Swinbuggy electric golf use
Range

Swinbuggy model

The electric SWINBUGGY is the ideal companion for large private spaces, whether it be golf courses, outdoor hospitality, vineyards, or amusement parks.

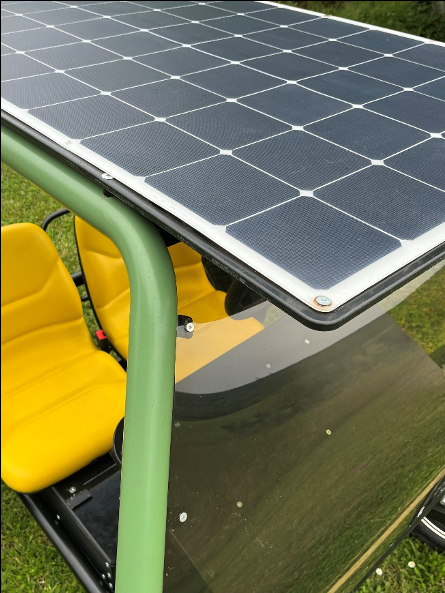

Versatile, silent, and autonomous, it stands out with its solar roof which, in the beautiful season, offers additional autonomy equivalent to two 18-hole rounds or 2 hours of hiking.

The SWINBUGGY, patented and manufactured in France, embodies innovation and excellence.

The market

Electric mobility for short distances has undergone a profound transformation in recent years with the increase in demand and supply of electric-assist bicycles and urban scooters.
Today, electric quadricycles for non-urban purposes mainly concern golf carts, which were initially intended for people with reduced mobility in the USA, then became widespread on courses by reducing travel times, without any notable evolution in terms of design, image, and performance for several decades.

The offer of electric quadricycles with a versatile purpose, including both all-road and off-road use, golf practice, and movement in private spaces is curiously almost non-existent. This is the market targeted by the SWINBUGGY.

The concept

To meet the needs of versatile use, the SWINBUGGY concept (two side-by-side seats) is developed around a specific and demanding set of specifications, prioritizing safety and comfort:
• Large diameter wheels (16 inches) to facilitate crossing, improve safety and comfort, and reduce ground impacts
• Reduced weight (180 to 200 kg) to optimize performance and autonomy, and reduce ground marking (“light is right” said Colin Chapman, the creator of Lotus)
• Very short length (2 m) to facilitate parking
• Active safety achieved through optimized tracks, a lowered center of gravity, rack and pinion steering, and hydraulic disc brakes
• Passive safety ensured by a rigid structure acting as a roll cage and seat belts available for use off the golf course
• Effortless access for use on a golf course
• Versatile loading capacity (golf bags, luggage, agricultural and forestry tools)
• Innovative design, highly distinctive, enhancing for users and rental sites
• Large capacity lithium-ion batteries, removable for prolonged use without recharging
• Four-wheel drive option for greater crossing capacity
• Four-wheel steering option for greater maneuverability
• Solar roof option for greater autonomy and renewable energy
• Steering wheel control option for people with reduced mobility
• Four-seat option


Industrial property

The technical means of the SWINBUGGY are patented.

The SWINBUGGY is available starting from €12,700.00 excluding tax, ex-factory.
Contact us
/
6kW Power
4 Hours Range
45 Speed
SWINBUGGY Electric: The Ideal ally for your golf course
Versatile usage: Suitable for golf courses and other large spaces, offering a comfortable driving experience for two people side by side or four people back to back.
Easy access on the course: Designed for effortless access, allowing golfers to move easily between holes.
Versatile loading capacity: Ample space to carry golf bags and other necessary equipment on the course.
Innovation and sustainability: High-capacity lithium-ion battery, optional solar roof for extended autonomy, and renewable energy.
SWINBUGGY Electric: The versatile partner for vineyards
  • Versatility: Ideal for various viticultural activities, from inspections to vineyard tours. Option for 4 seats to accommodate more people during trips around the estate.
  • Quiet operation: Runs silently, preserving the tranquility of the vineyard.
  • Exceptional battery range: With its solar roof, it offers extended autonomy, perfect for long days of work or exploration.
  • Environmentally friendly: Electric with solar charging, minimizing the carbon footprint.
  • Comfort and efficiency: Facilitates quick and comfortable travel through the vineyards, enhancing user efficiency and comfort.
Swinbuggy Features




General Specifications:



Maximum speed

45km/h

Speed limiter

3 configurable positions

Drive wheels

2 or 4 wheels

Steering wheels

2 or 4 wheels

Tires

140/70/16

Dimensions and weight



Front track

1260 mm

Rear track

1260 mm

Wheelbase

1400 mm

Overall length

2000 mm

Overall width

1400 mm

Net weight

180 kg to 200 kg

Total authorized weight

480 kg

Motors



Motor description

2 or 4 wheel motors

Motor type

Three-phase brushless

Nominal power per motor

1500 W

Nominal power speed

3600 rpm

Maximum torque per motor

135 Nm

Batteries



Type

Lithium-ion

Nominal voltage and capacity

48V, 70Ah to 140Ah

Suspension



Front and rear

Combined spring-shock absorber



on oscillating arm

Steering



Type

Rack and pinion

Steering wheels

2 or 4 steering wheels

Turning diameter

5m with 4 steering wheels

Braking



Brake on front and rear wheels

Hydraulic disc brake

Parking brake

On 4 discs

SWINBUGGY Electric: The essential companion for outdoor hospitality

  • Versatile usage: Suitable for travel within the expansive domains of outdoor hospitality, offering a practical solution for tours and transportation.
  • Silent and environmentally friendly: Operates quietly and ecologically with its electric propulsion and solar charging, preserving the tranquility of the site.
  • Exceptional Battery range: Equipped with a solar roof providing extended autonomy, ideal for the vast areas of camping domains.
  • Comfort and safety: Designed with a focus on passenger safety and comfort, offering a pleasant driving experience.
  • Ease of access and parking: Its compact design and ergonomic features facilitate access to lodging and leisure areas, as well as parking in tight spaces.
  • Customization for all: Options available such as steering wheel control for people with reduced mobility, ensuring an experience tailored to all users in outdoor hospitality domains.

/
